Celebrating 25 Years: 'Something Special' - SIP Vespa Racer 2019

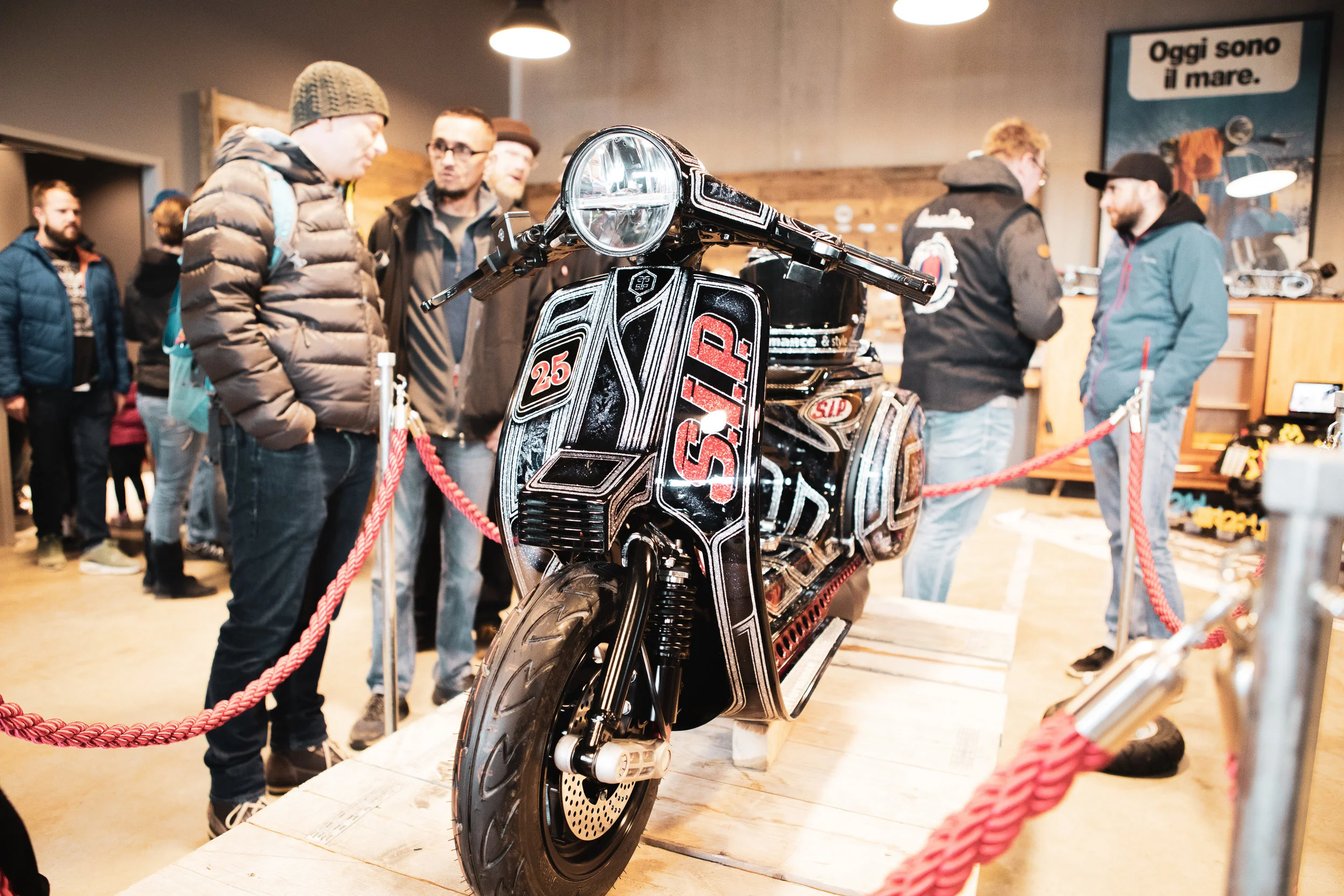

SIP Scootershop are celebrating; they have been going now for 25 years and to mark the occasion have designed and built their latest creation - the ‘Something Special’ Vespa racer.

Ralf Jodl explains…

“Performance and Style are two terms of significance. Especially when they have been the firm’s motto for twenty-five years. When this firm is also celebrating its silver jubilee, then it becomes more than a duty, but also a pleasure to bring this motto to life! To truly walk (or in this case ride) is what we‘re talking!

In our encapsulated world of Vespa (and Lambretta) scooters, there is only one effective method of realising this, with a really mind-blowing custom built vintage scooter! The initial idea was to unite custom and race scooter themes in one project. A scooter that not only gets noticed due to extraordinary styling, but can also deliver an impressive performance on a race circuit.

Whether the result of our efforts will satisfy the high standards and expectations of this challenge remains to be seen. We have given it our best shot, to translate our ambitions into actual reality with a completely fresh approach to such a project.

The chassis has been extended to equal the wheelbase of a Lambretta. We have shortened the steering column by 10cm and lowered the rear of the frame by 8cm. The legshields have also been lowered and moved forward. The intention was to not only provide the frame with a unique and unusual look, but to also improve the overall stiffness. This modification made an extended Vespa frame possible, without the need for an extra central frame spar between the headset and the seat. To underline this new-found rigidity, we also welded steel-tubing within the chassis, which was also ideal for the routing of both the electrical and control cables through the frame. The fuel tank, relocated to the central footboard tunnel, has been permanently welded to the frame of the scooter at this point to provide additional stability.

Only one power-plant could be considered for the provision of adequate propulsion – our very own SIP BFA 306 engine! This high-end miracle of vehicle engineering provides around 50PS straight out of the box. We left no stone unturned in our quest to create something just a little bit special and fully explore its explosive potential. It is currently pushing out 71PS, measured at the rear wheel! This power is transmitted to the riding surface with the assistance of an electrically operated sequential gear selector mechanism. The push of a button on the steering assembly is all that is required for rapid gear selection.

To set the scene surrounding this engineering wizardry a special paint job was also essential. The paintwork should not only reflect a show boat or race machine, but also represent its eye-catching old school influence and inspiration. In our collective opinion this can only be achieved with metal-flake, lots of metal-flake!

The result of our efforts can be appraised here on the SIP Flickr album. Even better, it can be enjoyed at the ‘Tacho Karacho‘ event on the 27 of July at our shop – or even at the DBM races!” - Ralf Jodl.

Overview of modifications:

The frame tail is cut horizontally and lowered by 8cm

The leg shield has been shortened by 10cm

The frame was extended to Lambretta wheelbase

Vespa PK Dropbar

Vespa ET4 steering column shortened by 6cm

The leg shield was scaled down and moved forward and down

This created a kind of second frame that gives more stability

In the frame run tubes in which the cables were laid. These are also welded to the frame and serve as additional reinforcement

The tank is integrated into the frame at the bottom and also serves as additional reinforcement

The chassis consists of modified SIP Performance shock absorbers

SIP Performance LED Headlights, SIP Speedometer 2.0, SIP brake levers also come off the SIP shelf


Carbon parts:

Bench and fan wheel cover are made by ourselves unique pieces. Seat can be removed with 2 quick-release buckles. The cooling hood is in one piece and integrates fan wheel cover and cooling hood.


Gear Selector:

The gearing is based on a sequential Motorino Diavolo gear selector. This was modified and connected to an electric servo. The selector box is operated by two buttons on the handlebars


Cooling of the clutch:

The gear oil is sucked off at the bottom of the engine case and injected via a pump in the centre of the clutch. The pump is switched on when a gear is engaged. This helps cooling the clutch at the startlt


Engine:

BFA 306 engine. Bore: 78mm / stroke: 64mm. All parts typical for this engine correspond to the series. The cylinder was revised. Timing raised, outlet machined, head adjusted.lt

Engine housing, clutch and crankshaft are standard BFA

Exhaust is an extra development

Carburetor is a 42mm DEA carburetor. The intake manifold was revised and fitted with an Italkit reed valve

The engine has currently 71.4hp at the crankshaft and 75hp at the clutch


Ignition:

SIP Performance ignition by VAPE with standard fan


Involved:

Owner: SIP Scootershop

Idea / Project Management: Jesco Schmidt

Sheet metal work: Sebastian Attenberger

Paint: Fabrizio Caoduro / 70s Helmets

Engine / Tuning: Jesco Schmidt

Assembly: Christoph Pflamp;uuml;gler / Jesco Schmidt

Carbon parts: Christian Schall



You’ve got to hand it to SIP - they’ve worked very hard to get where they are, starting out from small beginnings to becoming the world’s No.1 in scooter parts by constantly evolving, innovating and pushing the boundaries, and all done with an appreciative eye for photography and video that sets the benchmark and inspires the scootering masses… Happy 25th Birthday!
